Suzuki 20 HP DF20ATHL5

Product Details
Additional Information
Shaft Length Guidelines
Model Year Information

Product Details

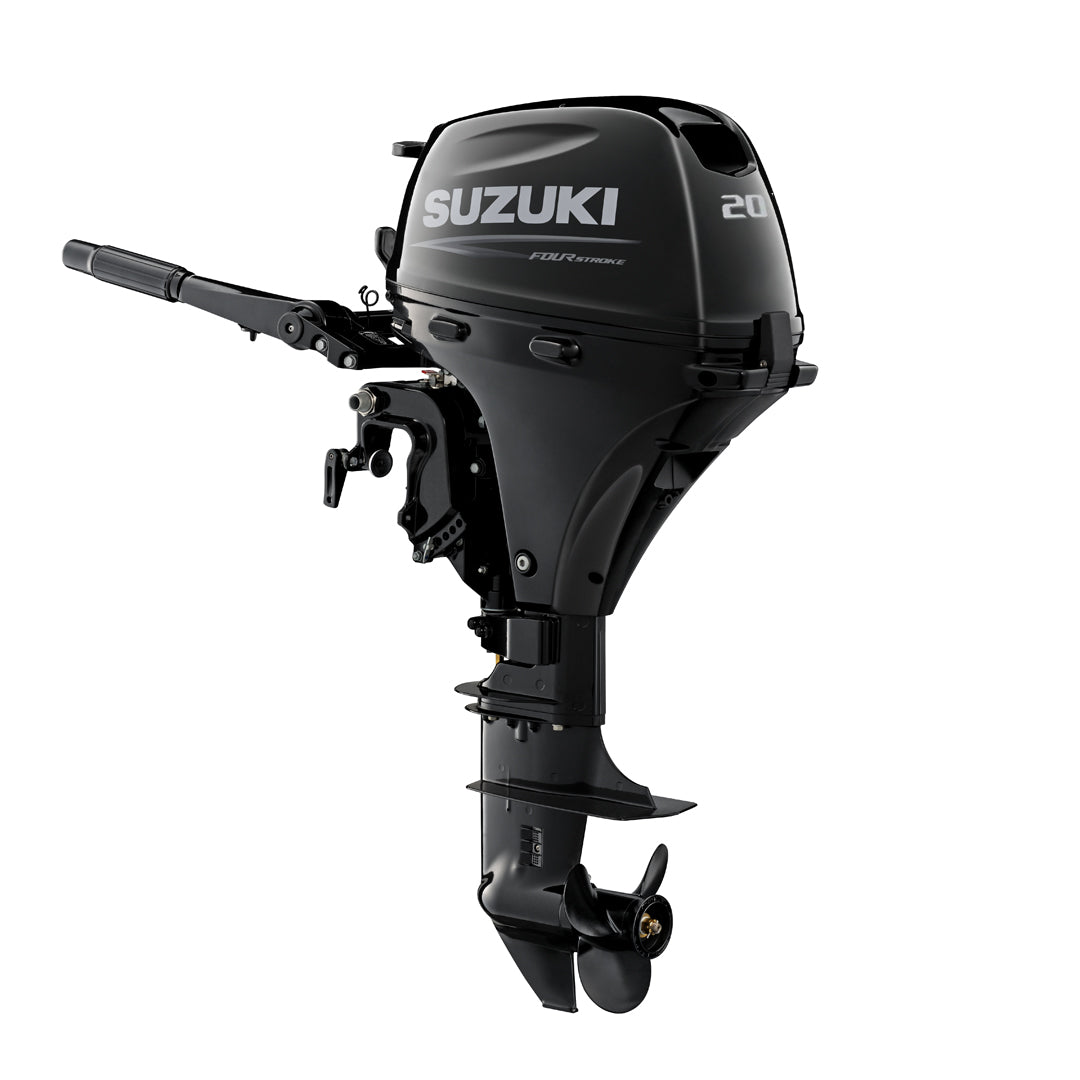

The 20 HP DF20ATHL5 Suzuki outboard model has all of the features you may need. This outboard comes equipped with a 20-inch shaft, throttle control, push button electric start, and power tilt and tiller steering. Ideal for large or heavy jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. The Suzuki 20 HP outboard engine is an excellent example of Suzuki's expertise in engineering. We are a Suzuki Outboard Motor authorized dealer. We offer free shipping in the lower 48 states.

Features:

Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Quiet Through-the-Prop Exhaust
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
5 Trim Positions w/Tilt Lock Pin
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Steering Friction Tension Control
Integrated Carrying Handle
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
3-Blade Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki's Lean Burn Control System
Suzuki's Newest 5-Year Manufacturer Warranty

In The Box:

3.1 gal. Fuel Tank
Fuel Line
Owner's Manual
Aluminum Propeller
Tool Kit
Suzuki's Newest 5-Year Manufacturer Warranty

Additional Information

Model:: DF20ATHL5
Country of Manufacture:: Thailand
Horsepower:: 20hp
Shaft Length:: 20" (Long)
Steering:: Tiller
Starting:: Electric
Trim & Tilt:: Power Tilt
Fuel Delivery:: EFI
Fuel Tank:: External
Fuel Type:: Unleaded Gasoline (87 octane)
Fuel Tank / Fuel Line:: INCLUDED: 3.1 Gallon Fuel Tank & Fuel Line
Cylinders:: 2
Weight:: 123 lbs.
Displacement:: 327 cc (20.0 cubic inches)
Bore & Stroke:: 60.4 x 57 mm (2.38 x 2.24 inches)
Full Throttle RPM Range:: 5000-6000 RPM
Ignition System:: Digital CDI
Induction Scavenging:: SOHC
Valves per Cylinder:: 2
Oil Type:: SAE 10W-30 or SAE 10W-40
Oil Capacity:: 33.8 fl oz. (1000 mL)
Lubrication:: Wet Sump; Trochoid Type Cam-Driven Oil Pump
Alternator:: 12V 145W 10A
Cooling System:: Water-Cooled
Saltwater Rated:: YES
Gear Ratio:: 2.08:1
Gear Shift:: Forward-Neutral-Reverse (front-mounted lever)
Propeller:: 3-Blade Aluminum 9.25" Dia x 9.0" Pitch
Internal Battery:: No

Shaft Length Guidelines

Model Year Information

Thank you for your interest in Suzuki outboard motors. Suzuki doesn't use and prohibits advertising of model years. All of our inventory is brand new, current production, and includes the full 5-Year Suzuki Marine warranty. You can visit Suzuki Marine's FAQs for more information.

WHAT DOES MODEL YEAR ELIMINATION MEAN AND HOW DOES IT AFFECT MY SUZUKI OUTBOARD?
We have studied the actions of the other major outboard manufacturers and now believe that Model Year Elimination will offer a host of benefits to our Customers, Dealers and Boat Builders. Suzuki Marine can now introduce new outboard models to the market during the boating season, instead of waiting until the model year change. Consumers will be able to purchase these models sooner than in the past. Dealers and Boat Builders will carry a better supply of outboards because they will not have to reduce inventory in advance of a Model Year Change.
