Suzuki 20 HP DF20ATS5

Product Details
Additional Information
Shaft Length Guidelines
Model Year Information

Product Details

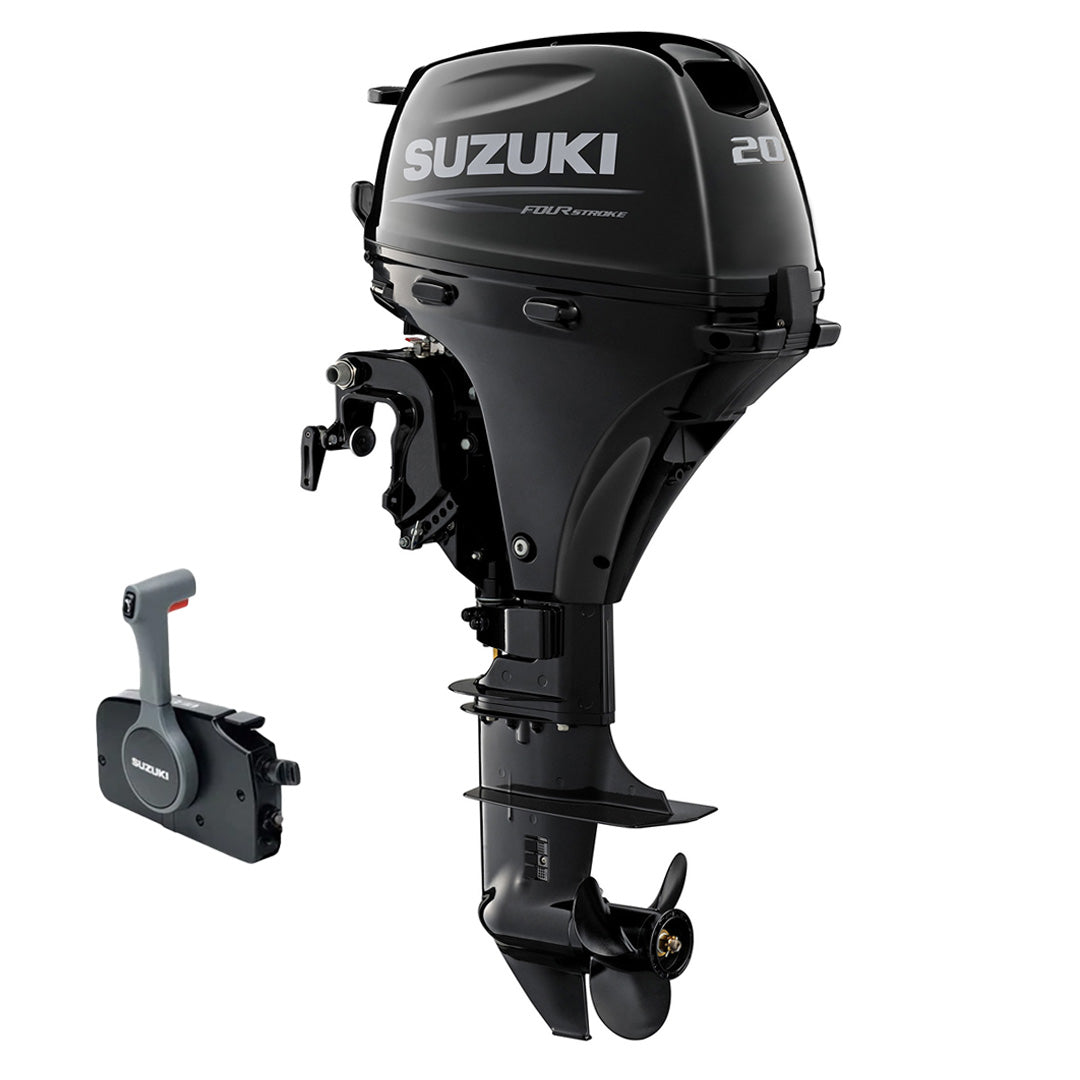

The 20 HP Suzuki EFI outboard model DF20ATS5 has all of the features you might want. This outboard boasts an electronic push button start, power tilt, and remote throttle and shift control, as well as a 15-inch short shaft. Larger or heavier jon boats and skiffs that require a short shaft, as well as supplemental power for sailboats and trolling/kicker applications, will benefit from this engine. The Suzuki 20 HP outboard engine is a fantastic illustration of Suzuki's engineering expertise, since it is one of the quietest 4-strokes ever produced. We are a Suzuki Outboard Motor authorized dealer. We offer free shipping in the lower 48 states.

Features:

Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Side Mount Control Box (includes harness)
Remote Throttle/Shift (cables not included)
Steering Link Arm (cable not included)
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
Quiet Through-the-Prop Exhaust
Shallow Water Drive
5 Trim Positions w/Tilt Lock Pin
Transom Bracket Mounting Hardware
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
3-Blade Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki's Lean Burn Control System
Suzuki's Newest 5-Year Manufacturer Warranty

In The Box:

Standard Side Mount Control Box & Harness
3.1 gal. Fuel Tank
Fuel Line
Owner's Manual
Aluminum Propeller
Tool Kit
Suzuki's Newest 5-Year Manufacturer Warranty

Additional Information

Model:: DF20ATS4
Country of Manufacture:: Thailand
Horsepower:: 20hp
Shaft Length:: 15" (Short)
Steering:: Remote
Starting:: Electric
Trim & Tilt:: Power Tilt
Fuel Delivery:: EFI
Fuel Tank:: External
Fuel Type:: Unleaded Gasoline (87 octane)
Fuel Tank / Fuel Line:: INCLUDED: 3.1 Gallon Fuel Tank & Fuel Line
Cylinders:: 2
Weight:: 120 lbs.
Displacement:: 327 cc (20.0 cubic inches)
Bore & Stroke:: 60.4 x 57 mm (2.38 x 2.24 inches)
Full Throttle RPM Range:: 5300-6300 RPM
Ignition System:: Digital CDI
Induction Scavenging:: SOHC
Valves per Cylinder:: 2
Oil Type:: SAE 10W-30 or SAE 10W-40
Oil Capacity:: 33.8 fl oz. (1000 mL)
Lubrication:: Wet Sump; Trochoid Type Cam-Driven Oil Pump
Alternator:: 12V 145W 10A
Cooling System:: Water-Cooled
Saltwater Rated:: YES
Gear Ratio:: 2.08:1
Gear Shift:: Forward-Neutral-Reverse (side mount control box)
Propeller:: 3 blade aluminum 9.25" Dia. x 10" Pitch
Internal Battery:: No

Shaft Length Guidelines

Model Year Information

Thank you for your interest in Suzuki outboard motors. Suzuki doesn't use and prohibits advertising of model years. All of our inventory is brand new, current production, and includes the full 5-Year Suzuki Marine warranty. You can visit Suzuki Marine's FAQs for more information.

WHAT DOES MODEL YEAR ELIMINATION MEAN AND HOW DOES IT AFFECT MY SUZUKI OUTBOARD?
We have studied the actions of the other major outboard manufacturers and now believe that Model Year Elimination will offer a host of benefits to our Customers, Dealers and Boat Builders. Suzuki Marine can now introduce new outboard models to the market during the boating season, instead of waiting until the model year change. Consumers will be able to purchase these models sooner than in the past. Dealers and Boat Builders will carry a better supply of outboards because they will not have to reduce inventory in advance of a Model Year Change.
