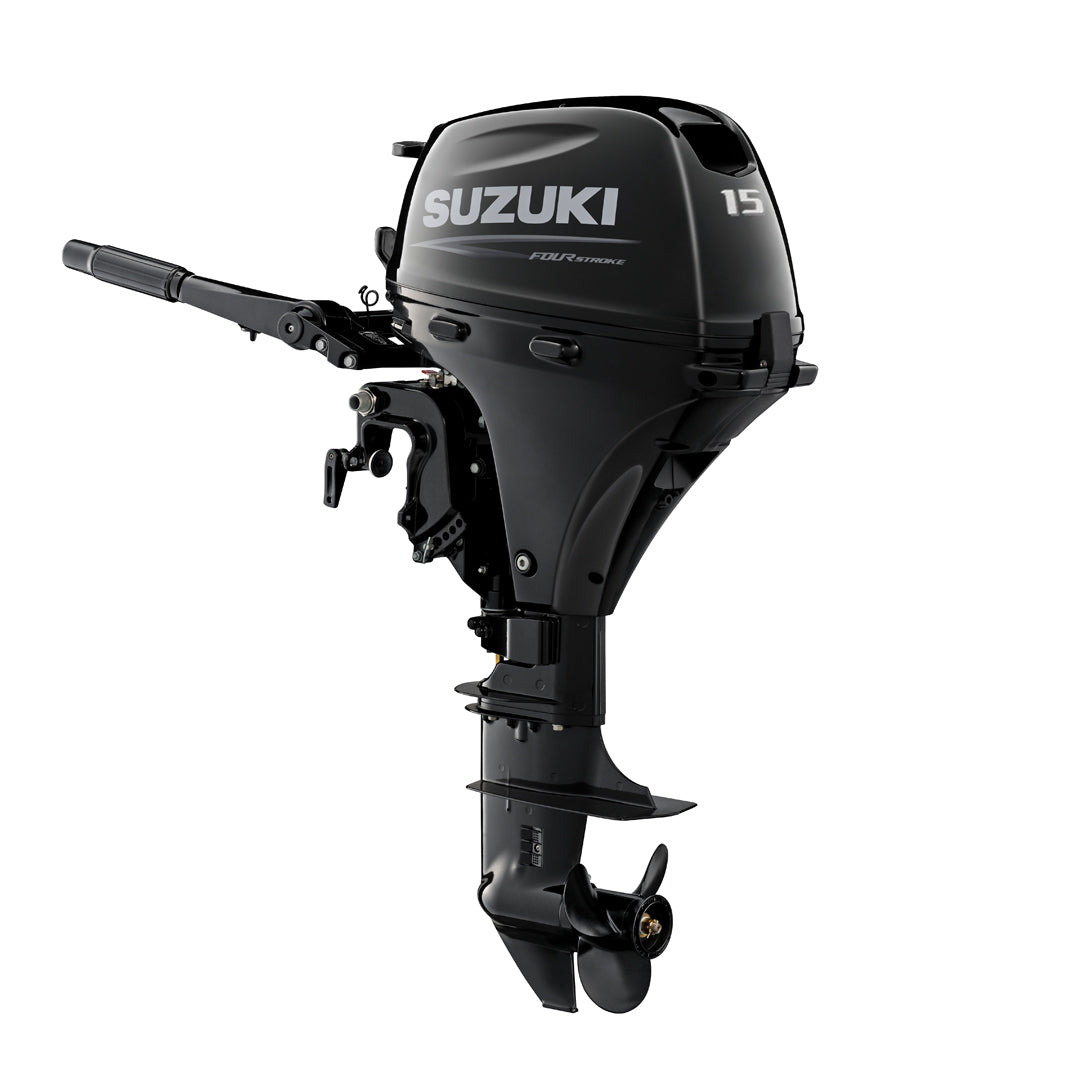

Suzuki 15 HP DF15ATHL5 Outboard Motor
The all new Suzuki 15hp EFI model DF15ATHL5 is an excellent choice of power for medium to larger sized jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. This model features push-button electric start with a built-in 12V charging system. In addition, all portable Suzuki models 15hp and below that feature electric start also retain the thru-cowl manual start pull cord. The DF15ATHL5 also includes Power Tilt - a handy feature when trolling.
As one of the quietest 4-strokes ever built, the 15hp is a great example of Suzuki's excellence in engineering. Check out the long list of standard features below which make the 15hp Suzuki an exceptional value.
*Photo may not show the actual model.
Couldn't load pickup availability
SHAFT LENGTH GUIDELINES
A lift gate is a hydraulic or electric platform attached to the rear of a truck or trailer, designed to simplify the process of loading and unloading cargo between the ground and the truck bed. It serves as a bridge between ground level and the vehicle’s tailgate, making it easier to move heavy items without the need for a loading dock. Lift gates are especially useful in locations without dock access, such as residential areas, to facilitate deliveries.
Suzuki 15 HP DF15ATHL5 Outboard Motor
Features
- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Electric Start + 12V Alternator System
- Thru-Cowling Manual Back-Up Starting
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Quiet Through-the-Prop Exhaust
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Shallow Water Drive
- Power Tilt with Tilt Pin (4 positions)
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Steering Friction Tension Control
- Integrated Carrying Handle
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 4-Blade High Thrust Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki's Lean Burn Control System
- Suzuki's Newest 5-Year Manufacturer Warranty
specifications
| MODEL | DF15ATHL5 |
|---|---|
| SKU | DF15ATHL5 |
| MANUFACTURER | Suzuki |
| COUNTRY OF MANUFACTURE | Thailand |
| HORSEPOWER | 15hp |
| WEIGHT | 123 |
| SHAFT LENGTH | 20" (Long) |
| STEERING | Tiller |
| STARTING | Electric |
| TRIM & TILT | Power Tilt |
| FUEL DELIVERY | EFI |
| FUEL TANK | External |
| CYLINDER(S) | 2 |
| DISPLACEMENT | 327 cc (20.0 cubic inches) |
| BORE AND STROKE | 60.4 x 57 mm (2.38 x 2.24 inches) |
| FULL THROTTLE RPM RANGE | 5000-6000 RPM |
| IGNITION SYSTEM | Digital CDI |
| INDUCTION SCAVENGING | SOHC |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 |
| OIL CAPACITY | 33.8 fl oz. (1000 mL) |
| LUBRICATION | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| ALTERNATOR | 12V 145W 12A |
| COOLING SYSTEM | Water-Cooled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 2.08:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (front-mounted lever) |
| PROPELLER | 4-Blade Aluminum 10" Dia x 5.0" Pitch |
| INTERNAL BATTERY | No |
In the Box
- 3.1 gal. Fuel Tank
- Fuel Line
- Owner's Manual
- Aluminum Propeller
- Tool Kit
- Suzuki's Newest 5-Year Manufacturer Warranty
