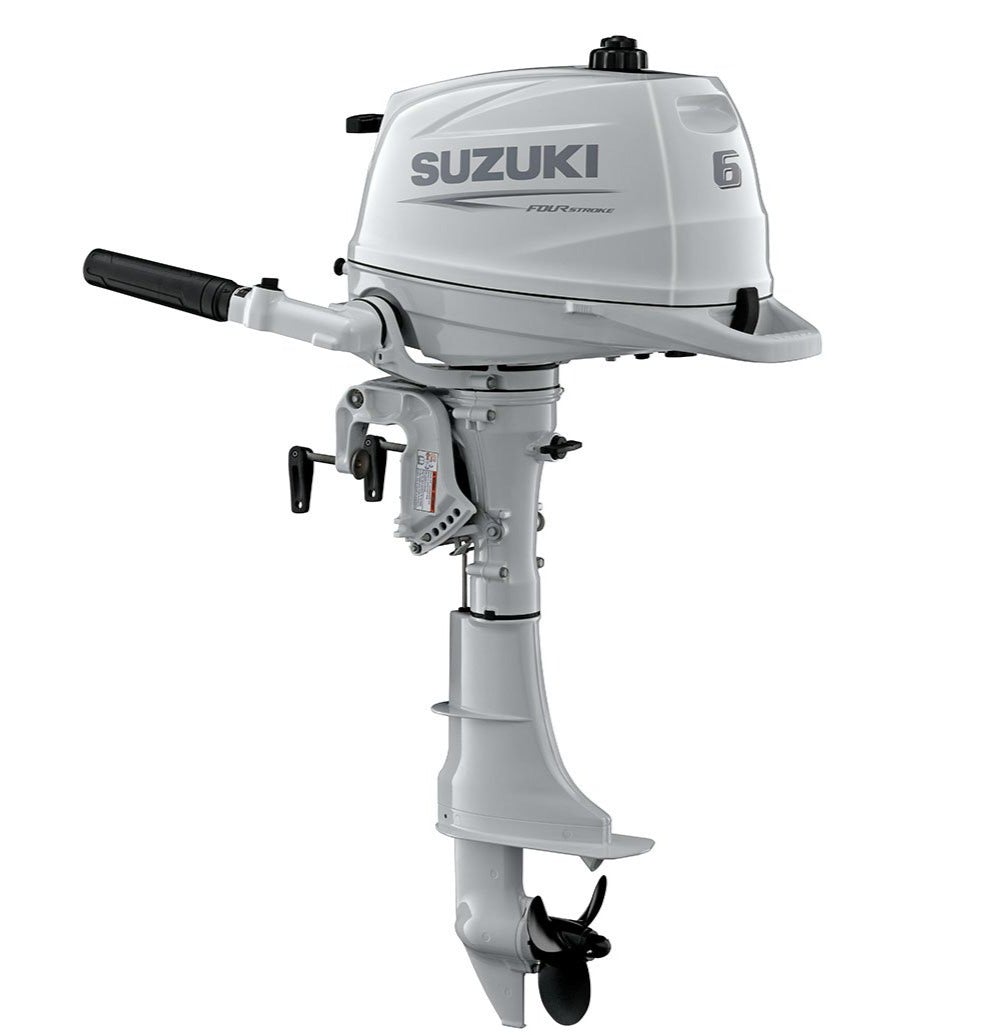

The 52 lb. Suzuki 6 HP outboard motor model DF6ASW5 is perfect you're looking for lightweight portable power for small to medium sized inflatables, jon boats, skiffs, or tenders. The all new Super Cool White 6 HP Suzuki engine with a 15-inch shaft offers the largest displacement of any one-cylinder outboard in this hp and weight class, shares many of the 4 HP features with increased performance made possible by a larger carburetor, and features an external fuel tank to easily connect an optional external fuel tank for longer range (purchased separately).
Features:
- Compact and Lightweight Design
- 3 Way Storage: Stbd, Port, or Front
- Saltwater Rated
- Multi-Layer Corrosion Protection
- Quiet Below-the-Water Exhaust
- Fold-Down Tiller Handle
- Rubber Mount Bracket System
- Twist-Grip Throttle with Tensioner
- Large Carrying Handle
- Large Gear Shift Lever
- Digital CDI Ignition for Quick Starting
- Larger Carburetor for Additional HP
- 3-Star Ultra-Low Emission Rating
- Shallow Water Drive (2 positions)
- 5 Trim Positions w/Tilt Lock Pin
- Over-Rev Limiter Protection
- Throttle Tension Control
- Steering Friction Tension Control
- 90° Left / Right Turning for Tight Spots
- Emergency Lanyard Stop Switch
- Built-in .26 Gal. Fuel Tank (35 min. @ WOT)
- External Tank Ready Connection on Engine
- 3-Blade Aluminum Propeller
- Suzuki's Newest 5-Year Manufacturer Warranty
In The Box:
- .26 gal. Integral Fuel Tank
- Owner's Manual
- Suzuki's Newest 5-Year Manufacturer Warranty
- Aluminum Prop
- Tool Kit
- Model:
- DF6ASW5
- Country of Manufacture:
- Thailand
- Horsepower:
- 6hp
- Shaft Length:
- 15" (Short)
- Steering:
- Tiller
- Starting:
- Manual
- Trim & Tilt:
- Manual
- Fuel Delivery:
- Carburetor
- Fuel Tank:
- Internal
- Fuel Type:
- Unleaded Gasoline (87 octane)
- Fuel Tank / Fuel Line:
- .26 US Gallon Integral Fuel Tank
- Cylinders:
- 1
- Weight:
- 52 lbs.
- Displacement:
- 138 cc (8.4 cubic inches)
- Bore & Stroke:
- 2.38 x 1.89 inches
- Full Throttle RPM Range:
- 4750-5750 RPM
- Ignition System:
- Digital CDI
- Induction Scavenging:
- OHV
- Valves per Cylinder:
- 2
- Oil Type:
- SAE 10W-30 or SAE 10W-40
- Oil Capacity:
- 24 fl oz. (700 mL)
- Lubrication:
- Wet Sump
- Alternator:
- Optional 12V 5A (installation required)
- Cooling System:
- Water-Cooled
- Saltwater Rated:
- YES
- Gear Ratio:
- 1.92:1
- Gear Shift:
- Forward-Neutral-Reverse (starboard side lever)
- Propeller:
- 3 blade aluminum 7.5" Dia. x 7" Pitch
- Internal Battery:
- No
